How to Draft a Receptacle and Small-Power Plan in CAD

Drafting a receptacle and small-power plan in CAD requires more than placing outlet blocks on an architectural background. The drawing must connect device locations with room use, equipment requirements, circuit records, mounting information, and the graphic conventions used throughout the electrical drawing set.

This guide explains a documentation-focused workflow for creating a readable and coordinated plan. It covers background management, symbol selection, equipment connections, circuit annotation, layer organization, drawing congestion, and quality control without treating a generic symbol as a substitute for verified project information.

A receptacle and small-power plan documents where electrical outlets, connection points, and related devices are required within a building. Although the symbols may appear simple, the drawing must coordinate architectural use, equipment needs, circuit information, mounting conditions, and other building systems.

The goal is not merely to place outlet symbols around a floor plan. A useful receptacle and small-power plan communicates design intent clearly enough for review, coordination, estimating, and construction documentation. The drafter must also preserve consistency between plans, schedules, diagrams, details, and equipment information.

What belongs on a small-power plan?

The exact drawing scope varies by project, but a small-power plan commonly includes general-use receptacles, dedicated equipment outlets, floor outlets, service outlets, specialty receptacles, and identified connection points for fixed equipment. It may also show disconnect references, junction boxes, control power locations, and home-run or circuit annotations when these are part of the project documentation method.

Some project teams combine receptacles with lighting or equipment plans. Others use a separate power plan to reduce congestion. The decision should be based on drawing readability, project size, and the amount of information that must be coordinated—not simply on whether everything can fit into one CAD file.

Begin with coordinated background information

Use the current architectural background before placing electrical symbols. Room arrangements, doors, casework, furniture, equipment, partitions, and finish conditions can all affect device placement. A receptacle that appears reasonable beside an empty wall may conflict with cabinetry, glazing, movable partitions, or a door swing after the background is updated.

Useful design inputs may include:

Architectural floor plans and enlarged room plans
Furniture and casework layouts
Equipment plans and connection schedules
Interior elevations for counters, workstations, and wall-mounted equipment
Mechanical, plumbing, fire protection, and low-voltage backgrounds
Owner or tenant requirements
Panel schedules and distribution diagrams
Project-specific criteria and applicable code review comments

External references are generally preferable to copying background geometry into the electrical drawing. Referenced files allow architectural changes to appear without creating multiple uncontrolled copies. Background visibility should be adjusted so electrical information remains visually dominant when plotted.

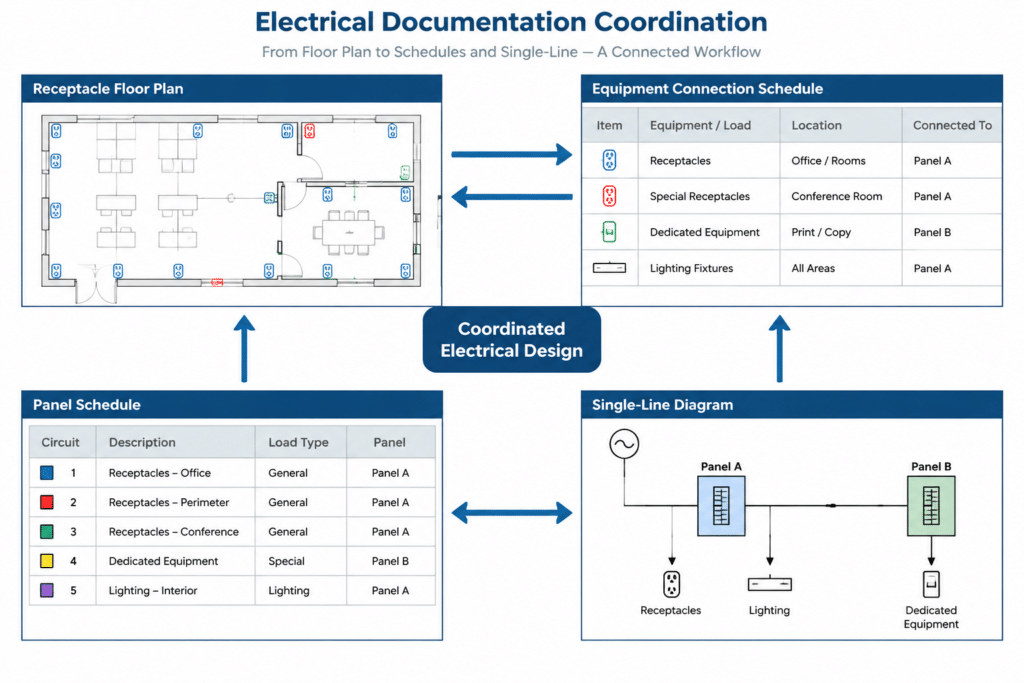

How to Draft a Receptacle and Small-Power Plan in CAD electrical CAD illustration

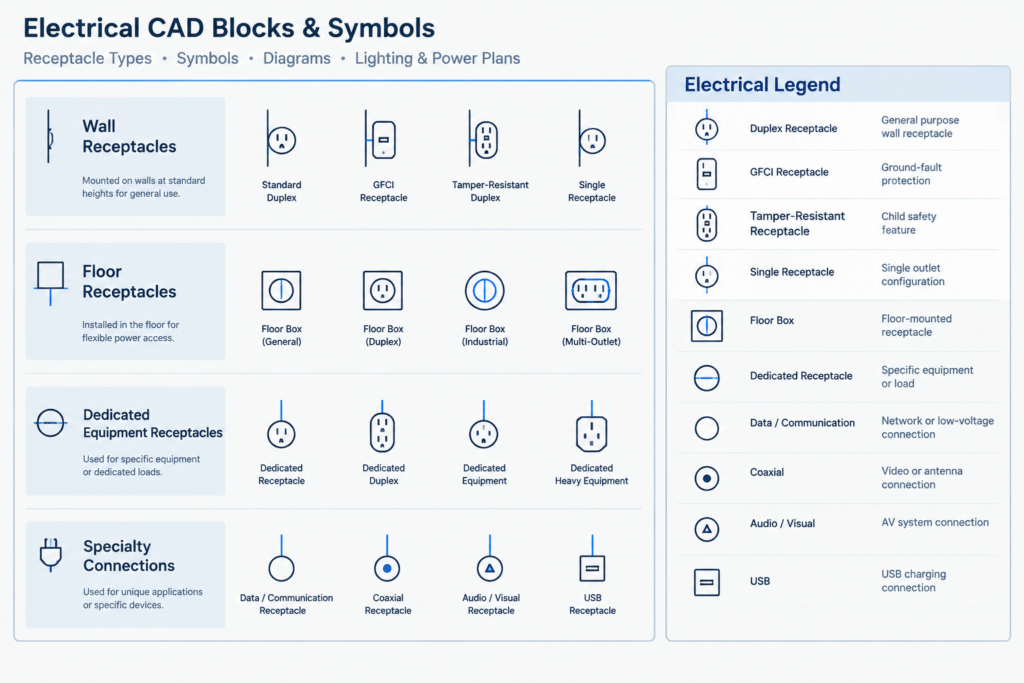

Build a consistent symbol vocabulary

Each symbol should represent a defined device or connection condition. Avoid creating visually similar symbols whose differences are too subtle to survive printing, reduction, or PDF review. If two devices have different requirements, distinguish them through a clear graphic feature, an adjacent tag, or both.

Information category	Typical documentation method	Coordination purpose
Device type	Distinct plan symbol	Identifies the general outlet or connection category
Special function	Symbol modifier or short tag	Separates general-use devices from dedicated or specialty conditions
Circuit source	Panel and circuit annotation	Connects the plan device to distribution documentation
Mounting condition	Note, elevation reference, or schedule entry	Clarifies conditions not visible in plan view
Equipment served	Equipment tag or keyed note	Links the electrical point to a coordinated load

CAD blocks should have logical insertion points and predictable orientation. For a wall device, the insertion point might align with the intended wall location. A floor device may use its center. Whichever convention is selected, apply it consistently so symbols can be moved, counted, or reviewed without ambiguous offsets.

Use attributes selectively

Block attributes can store circuit identifiers, equipment tags, device comments, or other structured information. Attributes are valuable when they support schedules, extraction, or quality-control searches. They are less useful when every symbol accumulates hidden fields that no one maintains.

Decide which information belongs inside the block and which belongs in nearby annotation. Frequently changing text may be easier to manage as a consistent label, while stable identity fields may work well as block attributes. Test attribute visibility at the intended plot scale before using the block throughout a project.

Place devices according to design intent

Device placement should respond to the use of the space rather than follow a purely graphic pattern. Review each room for furniture, equipment, service needs, accessibility considerations, and unusual construction conditions. Do not infer unverified installation requirements from a generic CAD block.

Common conditions requiring additional coordination include:

Outlets associated with workstations or systems furniture
Devices above counters, within casework, or on millwork panels
Floor outlets serving open spaces
Connections for appliances and fixed equipment
Exterior or wet-location conditions
Devices near operable partitions, glazing, or architectural panels
Maintenance and service outlets associated with building equipment
Outlet assemblies containing power and communications services

Symbols should be legible without pretending to show the physical faceplate at full scale. Electrical plans are diagrams overlaid on building geometry, so slight graphic displacement may be necessary. If a symbol is offset from its actual location for clarity, use a leader, extension, or note that prevents misinterpretation.

Document dedicated and equipment connections carefully

A general-use receptacle and an equipment-specific connection may look similar on the plan while carrying very different design implications. Dedicated devices should be linked to the equipment they serve through an equipment tag, connection identifier, keynote, or schedule reference.

Verify the documented connection type against approved project information. Equipment may require a receptacle, junction box, direct connection, disconnecting means, or another interface. The CAD symbol alone should not be treated as proof of the final connection method.

When equipment data is incomplete, identify the item as requiring confirmation rather than inventing a rating or connection requirement. Maintain an open-items list so placeholders do not silently become issued design information.

Show circuiting without overwhelming the plan

Circuit documentation methods differ among firms and projects. Some plans show branch-circuit lines between devices, while others rely primarily on panel and circuit tags. A hybrid method may show grouping or home-run intent without drawing every segment.

Whichever approach is used, the plan should make the source of each circuit understandable. Circuit lines should not be confused with walls, communication cabling, conduit routes, or control wiring. Use the project layer, linetype, and annotation conventions consistently.

Avoid long circuit lines crossing unrelated rooms when a continuation reference or localized annotation would be clearer. Circuit graphics should explain electrical relationships, not imply a precise raceway route unless the drawing is specifically intended to document routing.

Coordinate panel schedules and distribution drawings

Every panel and circuit identifier shown on the plan should match the panel schedules or other circuit records. Coordination is especially important when panels are renamed, circuits are reassigned, or equipment loads change during design.

A practical review can include the following checks:

Every circuit tag refers to an existing panel.
Plan circuit identifiers agree with the corresponding schedule entries.
Dedicated equipment appears consistently on the plan and schedule.
Spare or unassigned schedule positions are not accidentally shown serving plan devices.
Multi-sheet continuation methods are understandable.
Panel names are consistent across plans, schedules, and single-line diagrams.

Automated extraction can assist with this process, but it does not replace visual review. Text, blocks, and schedules may be technically matched while still communicating an incorrect equipment relationship.

Organize CAD layers by function

Separate device symbols, circuit graphics, tags, notes, and equipment references where the project CAD standard supports that structure. Functional separation improves plotting control and makes it easier to isolate information during review.

Avoid creating a unique layer for every minor device variation unless it provides a real coordination or display benefit. Excessive layer subdivision can make editing harder without improving the issued drawing. Layer names should be understandable to other team members and consistent across sheets.

Manage crowded plan areas

Kitchens, laboratories, workshops, equipment rooms, and dense office layouts can become difficult to read at the main plan scale. Do not solve congestion by shrinking text or stacking symbols until they are indistinguishable.

Better options include enlarged plans, interior elevations, equipment connection schedules, and keyed notes. A main plan can establish the overall location and direct the reader to a larger-scale view for detailed placement. Ensure that the enlarged view and overall plan are coordinated so devices are not duplicated or omitted.

Complete a focused quality-control review

Review the drawing both in CAD and in its intended issue format. A symbol arrangement that looks clear while zoomed in may fail when plotted or viewed on a full sheet.

Confirm that all symbols appear in the legend.
Check for duplicate or overlapping blocks.
Review device orientation along walls and casework.
Find symbols left behind after rooms or equipment moved.
Check tags for collisions with doors, dimensions, and other notes.
Compare specialty outlets with equipment schedules and architectural elevations.
Verify circuit and panel references across the drawing set.
Confirm that demolition, existing, and new-work graphics are distinguishable where applicable.
Search for temporary notes, unresolved placeholders, and unverified values.

A clear receptacle and small-power plan is the result of coordinated information, not symbol density. Consistent blocks, readable annotations, disciplined circuit references, and careful cross-checking help transform a collection of outlet symbols into a reliable project document.

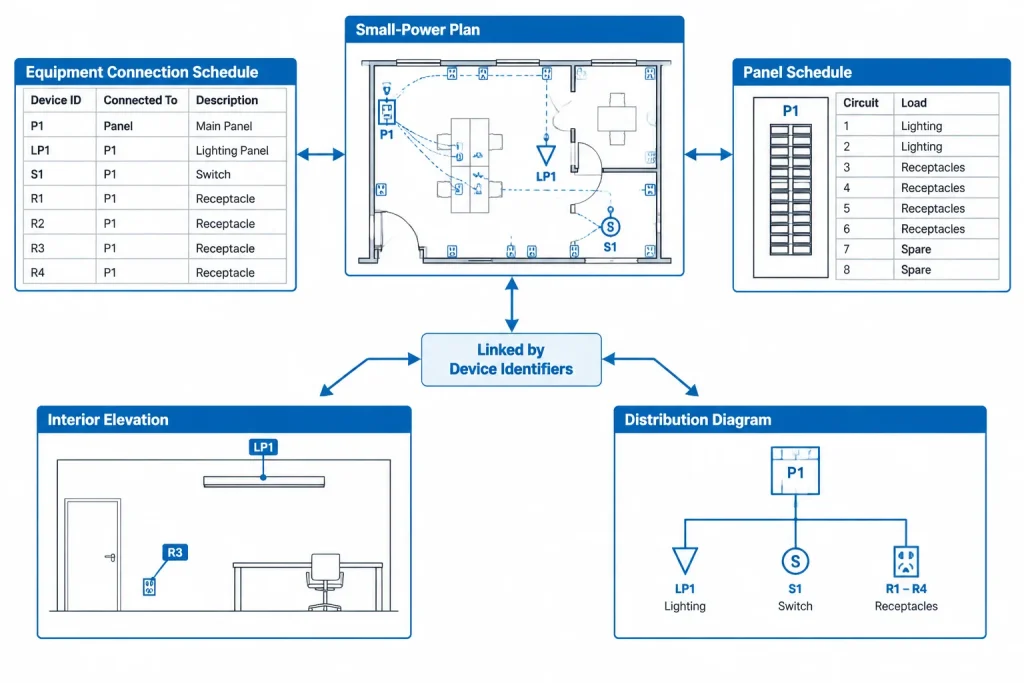

Turn design decisions into traceable CAD information

A strong small-power plan allows another reviewer to understand why a device is shown, what it serves, and where supporting information can be found. That traceability is especially important when the plan develops from architectural markups, equipment schedules, owner comments, and coordination meetings.

For each device or connection point, the CAD documentation should establish the relevant relationships without forcing every detail into the plan view. The symbol can identify the device category, while a tag, keynote, schedule reference, elevation, or detail communicates conditions that cannot be shown clearly in plan.

Use a controlled drafting sequence

Confirm the background: Check that the referenced architectural and equipment information represents the current coordination basis.
Place confirmed devices: Use approved symbols and consistent insertion conventions rather than creating temporary variations for individual rooms.
Identify unresolved conditions: Mark incomplete equipment or connection information for follow-up instead of assuming requirements.
Add circuit relationships: Apply the project method for panel references, circuit tags, grouping, or continuation notation.
Coordinate supporting records: Compare device tags and equipment references with schedules, diagrams, elevations, and details.
Review the issued view: Check the plotted or published sheet rather than relying only on the editable CAD display.

Separate location accuracy from graphic clarity

The intended device location should remain anchored to the coordinated building geometry, but its symbol and annotation must also be readable. When nearby walls, casework, dimensions, or equipment make the exact point difficult to see, use a clear leader or reference rather than allowing the symbol to appear connected to the wrong surface.

This distinction is useful during revisions. The location represents design intent, while the displayed graphics communicate that intent. Moving annotation for clarity should not unintentionally move the underlying device relationship.

Prepare the drawing for revision and handoff

CAD organization should help future editors identify device blocks, annotations, circuit graphics, and references without reverse-engineering the sheet. Consistent block names, attribute practices, layers, and annotation styles make design changes easier to track and reduce the risk of leaving obsolete information behind.

Before handoff, remove abandoned symbols, unexplained temporary graphics, and superseded notes. Retain unresolved items only when they are deliberately identified and included in the project review process. A clean drawing database supports both visual checking and any approved extraction or comparison workflow used by the project team.

Frequently asked questions

What is the difference between a receptacle plan and a small-power plan?

A receptacle plan focuses primarily on outlet locations and related annotations. A small-power plan may include a broader group of connection points, dedicated equipment supplies, junction boxes, floor devices, service outlets, and other localized power requirements. Project naming and sheet organization vary, so the drawing legend and scope should make the distinction clear.

Should receptacles and lighting appear on the same CAD plan?

They may be combined when the result remains readable and consistent with the project documentation method. Separate plans are often clearer when lighting, controls, receptacles, equipment connections, and circuit information create excessive graphic congestion.

Should every receptacle block contain attributes?

No. Attributes are most useful when they support maintained information such as device identity, circuit coordination, scheduling, or quality-control searches. Information that changes frequently or needs to remain immediately visible may be better handled with nearby annotation.

How should an unknown equipment connection be shown?

Use a clearly identified placeholder or open-item notation that follows the project review process. Do not assign an unverified connection method, circuit requirement, or equipment value merely to complete the graphic.

Do circuit lines represent actual conduit routing?

Not necessarily. On many small-power plans, circuit graphics communicate grouping, source, or home-run intent rather than an exact installed pathway. The drawing notes, legend, and project scope should clarify when routing is diagrammatic.

How can crowded device locations be documented clearly?

Use enlarged plans, elevations, keyed notes, schedules, or details instead of reducing annotation until it becomes unreadable. The overall plan should direct the reader to the supporting view and remain coordinated with it.

What should be checked before publishing the CAD sheet?

Review block visibility, annotation collisions, device orientation, panel and circuit references, equipment tags, layer display, background currency, unresolved placeholders, and agreement with related schedules and diagrams. The final published output should also be inspected because plot settings can reveal issues that are not obvious in the editing view.
