Coordinating Electrical CAD Plans with Architectural Room Names and Numbers

Room names and numbers are easy to treat as background information, but they often become working references throughout an electrical drawing set. Designers use them to identify device locations, organize panel schedule descriptions, define lighting control areas, write equipment connection notes, and communicate with other disciplines.

When architectural room data changes, electrical documentation can become inconsistent even if the device geometry remains correct. A floor plan might show a revised room number while a panel schedule, lighting control diagram, or equipment schedule still carries the earlier designation. A deliberate electrical CAD room coordination workflow helps prevent these mismatches.

Why room references matter in electrical drawings

A room reference usually combines a room number, a room name, or both. The architectural floor plan is commonly the primary source, but the information can appear in many electrical documents:

• Lighting and receptacle plans
• Equipment connection plans and schedules
• Panel schedule circuit descriptions
• Lighting control diagrams and zone schedules
• Fire alarm, communications, and security plans
• Enlarged plans, details, and interior elevations
• Testing, commissioning, and closeout documents

Room information does more than describe geography. It gives reviewers a shared language for finding devices and understanding design intent. This makes consistency more important than the visual appearance of any single room tag.

Use the architectural background as the location source

Electrical drafters should generally avoid rebuilding architectural room tags as independent electrical text unless there is a clear documentation reason. Manually copied labels can remain in place after the architectural source changes, creating two competing versions of the room data.

A coordinated architectural background should provide the basic room boundaries, names, and numbers needed for the electrical plan. Electrical annotations can then reference that information without duplicating it unnecessarily.

Control background visibility

Architectural room tags must be visible enough to support electrical plan reading but should not compete with electrical symbols and circuiting. Consider how the background will appear in the final plotted sheet, not only how it looks on screen.

Depending on the project workflow, room-related background graphics may be controlled through referenced-file layers, visibility settings, display overrides, or a separate prepared background. The method is less important than achieving a predictable result across every applicable electrical sheet.

Do not rely on position alone

A room tag near a device does not always prove that the device belongs to that room. Open plans, shared walls, ceiling-mounted equipment, alcoves, and devices serving adjacent spaces can make proximity misleading. Where the association affects a schedule or diagram, confirm it against room boundaries and the design intent.

Build a room-reference hierarchy

Before coordinating the drawings, decide which document governs each type of information. A simple hierarchy reduces uncertainty during revisions.

The room number may originate with the architect, but an electrical circuit designation should still be controlled within the electrical documents. Coordination does not mean allowing background text to replace electrical design data.

Separate room data from electrical annotations

Good CAD organization makes changes easier to track. Architectural room tags, electrical device tags, circuit annotations, and schedule text should remain distinguishable by ownership and function.

Avoid placing copied room names on the same layer as circuit numbers or general electrical notes. If supplemental room references are required on an electrical sheet, place them on a clearly identified electrical annotation layer and document why they exist. This allows drafters to isolate, review, and update them without disturbing other text.

Consistent text style and plotting hierarchy are also useful. Architectural room data can be subdued while electrical tags remain prominent. The objective is not to hide the room information but to make the electrical scope visually dominant.

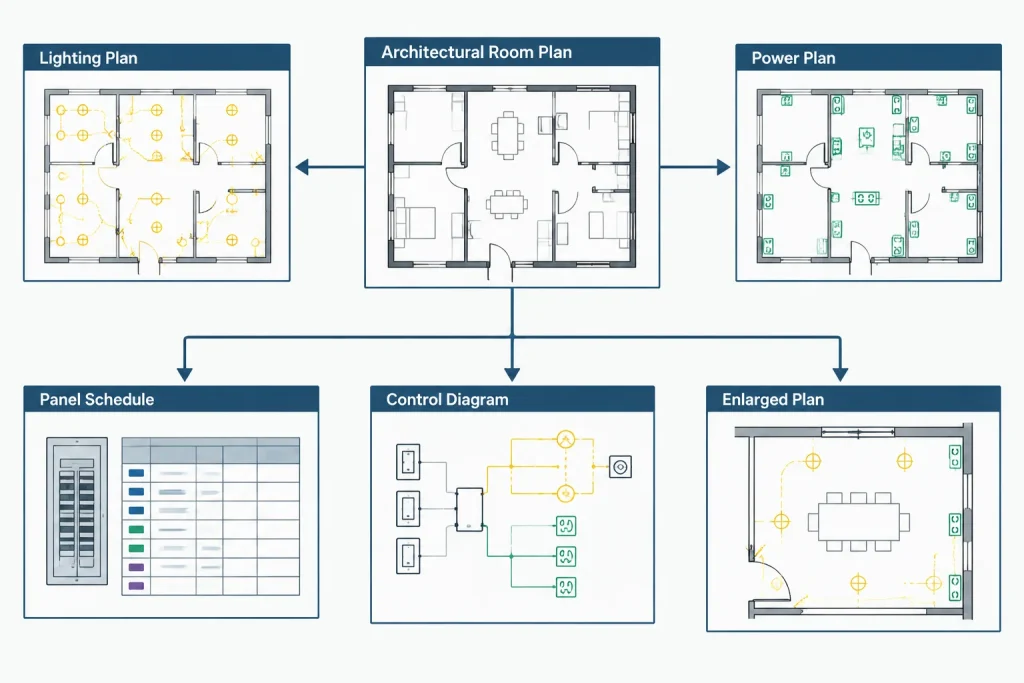

Coordinate room references across plan types

A single space may appear differently on lighting, power, communications, and life-safety plans. Each discipline plan should use the same underlying room identification even when its electrical content differs.

Lighting plans

Room changes may affect fixture grouping, control zones, sensor associations, switching notes, and lighting schedule remarks. A renamed room can also change how a control area should be described, even if the fixture layout remains unchanged.

Power plans

Check receptacles, dedicated outlets, equipment connections, circuit home runs, and panel schedule descriptions. Generic descriptions may be insufficient when several rooms contain similar equipment, while excessively detailed descriptions can become fragile when layouts change.

Systems plans

Fire alarm, security, data, and communications devices may use room names in risers, point lists, sequence documents, or device schedules. Confirm whether each reference describes the physical device location, the area served, or both. Those concepts are not always identical.

Enlarged plans and details

An enlarged plan should agree with the parent floor plan. Use a consistent room number and confirm that callouts direct readers to the correct enlarged area. If a room is divided or renumbered, both views must be reviewed rather than assuming the reference will update automatically.

Handle room renumbering as a drawing-wide change

Room renumbering should not be treated as a simple background replacement. It is a coordination event that may affect annotations outside the floor plan.

When updated architectural information is received, use a structured review:

• Identify added, removed, divided, combined, renamed, and renumbered rooms.
• Compare room boundaries as well as room tags.
• Search electrical text and schedules for superseded names or numbers.
• Review panel schedule descriptions associated with affected spaces.
• Check lighting control zone names and diagram references.
• Review enlarged plans, details, and sheet callouts.
• Confirm equipment tags whose identifiers include location information.
• Record unresolved changes for design review rather than guessing.

A text search can help find repeated room references, but it cannot detect every problem. Abbreviations, shortened schedule descriptions, and graphical associations require visual review.

Avoid embedding unstable room data in permanent identifiers

Some projects include room numbers within equipment tags, circuit descriptions, control zone names, or device identifiers. This can improve location recognition, but it also creates additional work whenever rooms are renumbered.

Before adopting location-based identifiers, consider whether the room designation is expected to remain stable and whether the identifier must persist through construction, operations, or future renovations. A durable equipment tag and a separate location field may be easier to maintain than an identifier that must change whenever the architectural plan changes.

If a project already uses room-based identifiers, apply the convention consistently and maintain a clear record of changes. Do not partially update the system.

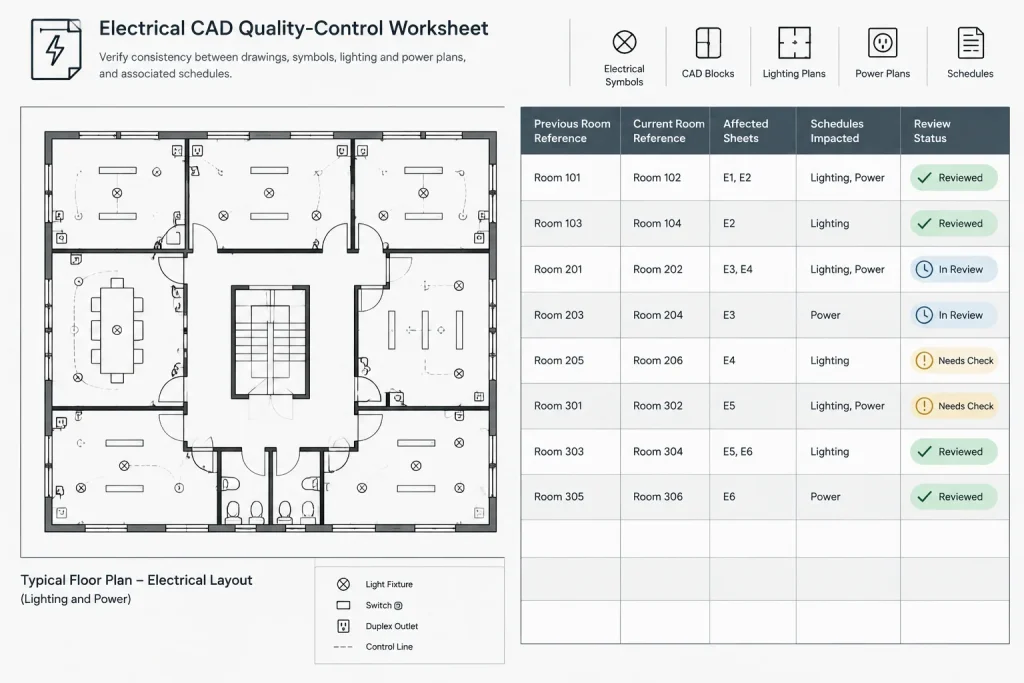

Use a room coordination worksheet

For larger or frequently revised projects, a simple room coordination worksheet can provide a useful bridge between architectural changes and electrical documents. It does not need to replace the formal drawing schedules.

This worksheet is especially helpful when different team members maintain plans, schedules, and diagrams. It gives the team a common change list without making the CAD background itself the only communication tool.

Final quality-control checks

Before issuing the electrical set, review room coordination in the plotted sheet context. Confirm that room tags are legible, current, and not obscured by electrical symbols. Verify that copied room references do not conflict with the architectural background.

• Compare each electrical plan with the latest approved coordination background available to the team.
• Check that room names and numbers agree across related electrical plan types.
• Review schedule descriptions for obsolete references.
• Confirm that control areas and served areas are not mislabeled as device locations.
• Inspect enlarged plans and dependent details separately.
• Remove temporary comparison marks, duplicate labels, and abandoned annotations.
• Document any known discrepancy that cannot be resolved before issue.

Reliable electrical CAD room coordination depends on clear ownership, controlled background use, and a review process that reaches beyond the floor plan. Treating room changes as drawing-set changes produces documents that are easier to navigate, check, revise, and use during later project phases.
