How to Draft Emergency Lighting and Exit Sign Plans in CAD

An emergency lighting plan is more than a floor plan with a few shaded fixture symbols. It must communicate which luminaires and exit signs serve the emergency function, how they receive power, how normal lighting controls affect them, and where related information appears elsewhere in the drawing set.

The drafter’s task is to make this design intent traceable without crowding the plan. That requires consistent symbols, disciplined circuit annotation, clear source identification, and coordination among lighting plans, panel schedules, control diagrams, single-line diagrams, and equipment schedules. Project requirements and applicable regulations must always be verified by the responsible design team; a CAD symbol or typical detail does not establish compliance by itself.

Define the Emergency Lighting Documentation Strategy

Before placing blocks, determine how the project team intends to document the system. Emergency illumination may be provided by selected luminaires, dedicated emergency fixtures, integral battery units, central battery or inverter equipment, generator-backed distribution, or a combination of methods. Exit signs may have integral backup provisions or may be connected to an emergency distribution system.

The drawings should distinguish these arrangements rather than grouping every device under a generic emergency symbol. Ask the following drafting questions:

• Which fixtures operate during loss of normal power?
• Is the emergency function integral to the fixture or supplied by separate equipment?
• Which panel, inverter, transfer arrangement, or other source serves each device?
• Does a fixture operate normally and transfer to emergency operation, or is it normally off?
• How are local switches, relays, sensors, and lighting control panels represented?
• Which information belongs on the plan, and which belongs in a schedule or diagram?

Resolving these questions early prevents a common problem: a plan that visually identifies emergency fixtures but does not explain their electrical relationship to the distribution and control systems.

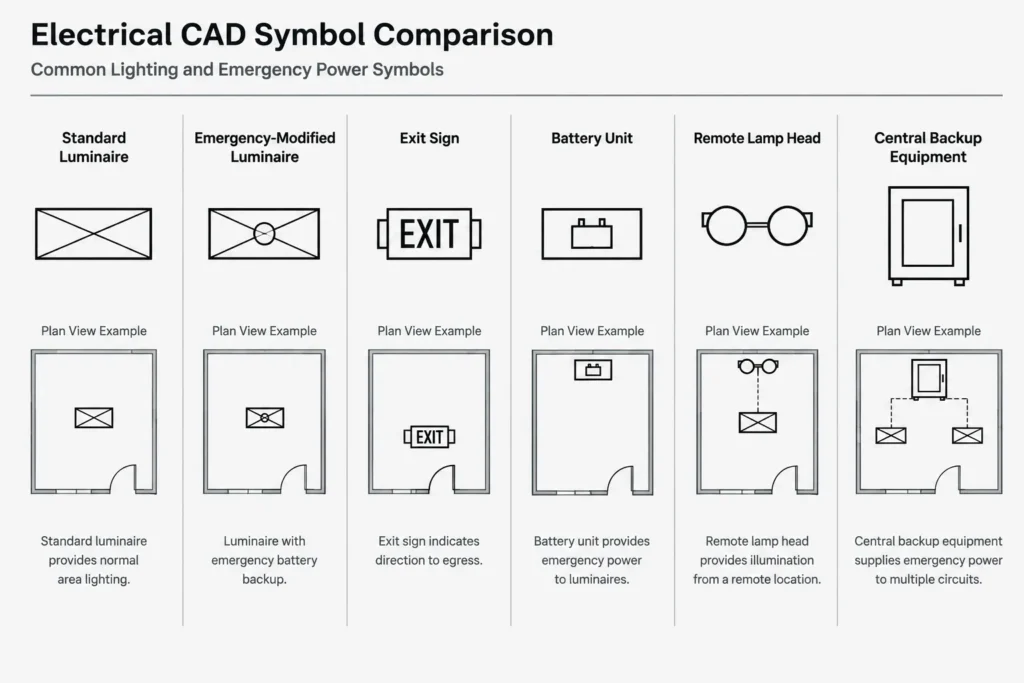

Build a Clear Symbol Family

Emergency symbols should remain visually related to the project’s standard lighting symbols. A modifier can identify the emergency function while the base symbol continues to represent the fixture type. Depending on office practice, that modifier might be a fill pattern, boundary, letter, suffix, or separate graphic marker.

Avoid relying only on color. Colors can disappear in monochrome plots, PDF markups, and printed field sets. The emergency distinction should remain visible through linework, text, or another plot-stable feature.

Keep the legend limited to symbols that actually appear in the set. If two symbols look similar but represent different backup methods, their descriptions should state that difference directly.

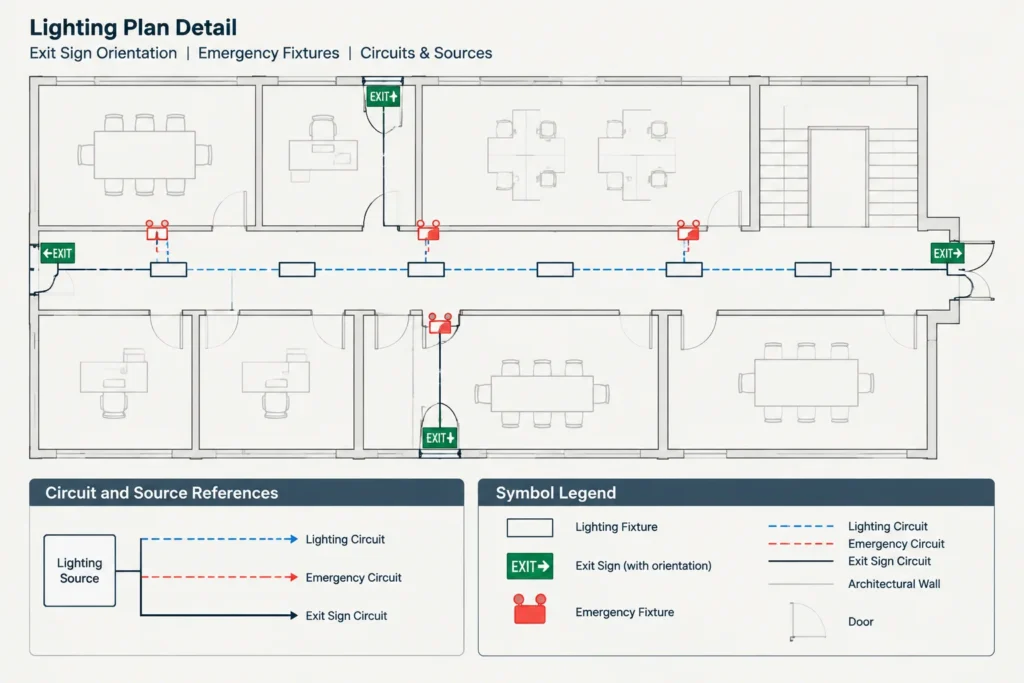

Draft Exit Signs with Directional Intent

An exit sign symbol should communicate more than the presence of a sign. Its placement and orientation must agree with the architectural circulation concept. Where the drawing convention includes directional indication, the arrow or directional component should be readable at the plotted scale and should rotate correctly with the sign.

Use separate block states or carefully managed attributes for sign variations instead of manually adding loose arrows. Loose graphics are easy to leave behind when a sign moves or changes orientation. If the project distinguishes wall-mounted, ceiling-mounted, single-face, or multiple-face signs, preserve those distinctions in the block name, attributes, or schedule data.

Coordinate sign locations with doors, reflected ceiling information, ceiling features, room names, and architectural elevations. A plan symbol may look correct in isolation while conflicting with a bulkhead, glazing system, ceiling transition, or door swing shown by another discipline.

Show Power Sources Without Overloading the Plan

Each emergency device should be traceable to its source, but the floor plan does not need to reproduce the entire distribution diagram. Use concise circuit annotation and references that connect the plan to the appropriate panel schedule, equipment schedule, or diagram.

A practical plan annotation may include the fixture type, circuit designation, and an emergency source or system identifier. The exact format should match the project’s general lighting annotation method. Avoid creating an unrelated tagging system only for emergency fixtures unless the added distinction has a clear purpose.

Where a group of fixtures shares the same source and control arrangement, a keyed note or bounded area note may be cleaner than repeating a long description beside every symbol. However, grouped notes must have an unmistakable scope. Readers should not have to guess whether a note applies to one fixture, one room, or an entire plan area.

Coordinate Distribution References

If emergency power is represented on a single-line or riser diagram, use the same equipment and panel identifiers on the lighting plan. A panel should not appear under one abbreviation on the plan and another in the diagram. Likewise, central lighting backup equipment should carry one stable tag across plans, schedules, diagrams, and details.

Document Control Behavior

Emergency luminaires often participate in the normal lighting environment while also requiring defined behavior during a loss of normal power. The drawings must explain that relationship without implying unsupported control logic.

Identify whether an emergency-designated luminaire is normally switched, normally unswitched, controlled through a listed interface selected by the design team, or dedicated to emergency operation. When the logic is too complex for a floor-plan circuit line, reference a lighting control diagram or sequence note.

Control documentation should coordinate the following:

• Local switches, sensors, relays, and control zones shown on the plan
• Normal and emergency source relationships shown in diagrams
• Fixture and control-device identifiers used in schedules
• Any bypass, transfer, or override function defined by the electrical design
• The intended state of affected luminaires during normal and emergency conditions

Do not use a circuit line alone to imply control behavior. Circuiting and control are related, but they are not the same information.

Use Layers and Blocks That Support Revision

Emergency lighting graphics should fit the project’s broader CAD layer structure. Separate layers may be useful for fixtures, exit signs, circuiting, control lines, equipment, tags, and notes. The exact layer names should follow the project CAD standard rather than an improvised naming scheme.

Blocks should use a consistent insertion point and include only the geometry needed for the intended drawing scale. Attributes can hold fixture types, equipment tags, circuit references, or source identifiers, but visible text should not duplicate nearby annotations unnecessarily.

If symbols are extracted into schedules, define which attribute is authoritative. For example, a fixture type stored in the block should agree with the visible tag and schedule row. Unmanaged duplicate text creates opportunities for conflicting information after revisions.

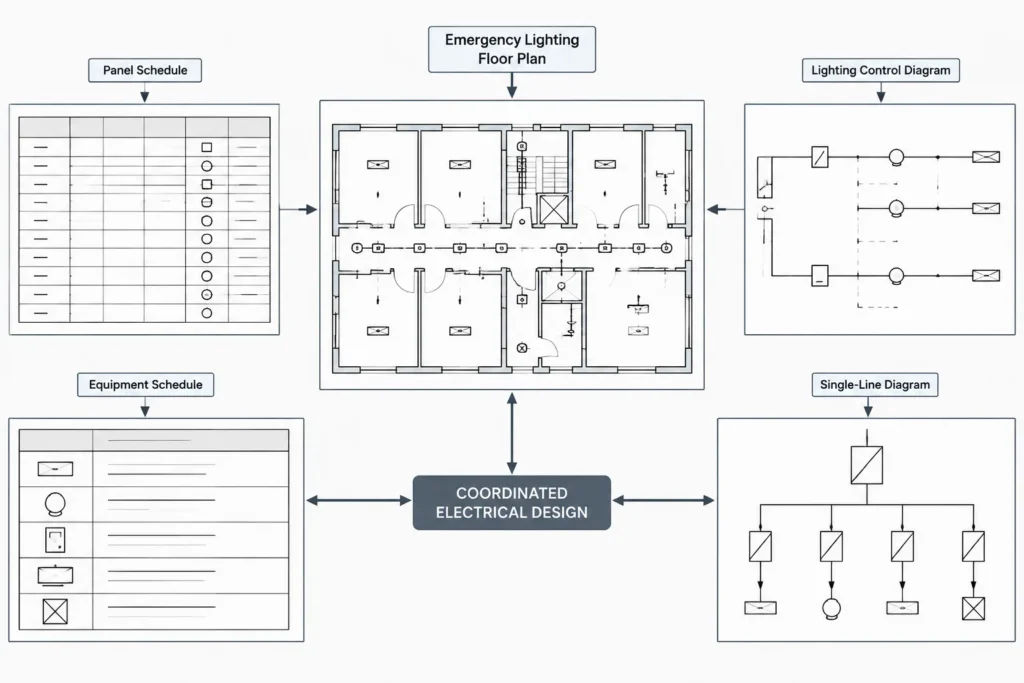

Coordinate Across the Drawing Set

Emergency lighting information commonly appears in several locations. Review it as a connected documentation system rather than checking each sheet independently.

• Lighting plans: Confirm device locations, fixture types, circuit tags, directional graphics, and control associations.
• Reflected ceiling plans: Check ceiling geometry, mounting context, and conflicts with architectural or mechanical elements.
• Panel schedules: Confirm that referenced circuits and panel names exist and use matching terminology.
• Single-line or riser diagrams: Verify that emergency distribution paths and equipment identifiers support the plan references.
• Fixture schedules: Coordinate fixture types and descriptions without assuming that a catalog designation alone explains emergency operation.
• Control diagrams: Confirm normal switching and emergency response intent.
• Equipment layouts: Show central backup equipment where required for spatial coordination.

Perform a Focused CAD Quality Check

Before issue, isolate emergency lighting layers or use a dedicated review view. This makes omissions and inconsistent symbols easier to detect. Review every area against the architectural circulation plan and compare plan annotations with schedules and diagrams.

• Are all emergency symbols defined in the legend?
• Do exit sign orientations agree with the intended circulation direction?
• Can every emergency fixture and sign be traced to a documented source?
• Are equipment and panel tags identical across all drawings?
• Are normal control behavior and emergency behavior distinguishable?
• Do emergency modifiers remain readable in monochrome plots?
• Have deleted or relocated fixtures left behind circuit lines, arrows, tags, or control graphics?
• Are keyed notes clearly bounded and referenced?
• Do schedules contain all types and equipment tags used on the plans?

A strong emergency lighting plan does not attempt to place every technical explanation beside every fixture. Instead, it creates a dependable chain of information: the plan identifies the device and location, annotations identify its source and function, and coordinated schedules and diagrams explain the broader system. That traceability is what turns a collection of CAD symbols into useful construction documentation.
